Khush Sheets and Plates, based in Delhi, India, stands out as a top manufacturer and supplier of Titanium Grade 2 Sheets and Plates, delivering high-quality titanium solutions across various industries. Renowned for its precision engineering and cutting-edge production capabilities, the company adheres to global standards, ensuring that its Titanium Grade 2 products perform exceptionally well in challenging environments. With a strong emphasis on durability, corrosion resistance, and cost-effectiveness, Khush Sheets and Plates caters to sectors like aerospace, marine, chemical, and medical. The company has built a reputation for timely deliveries, competitive pricing, and a solid commitment to customer satisfaction, both at home and abroad.
Titanium Grade 2 Sheets and Plates consist of 99.2% pure titanium, with small amounts of iron (≤0.3%), oxygen (≤0.25%), carbon (≤0.08%), nitrogen (≤0.03%), and hydrogen (≤0.015%). This commercially pure titanium alloy is known for its excellent corrosion resistance and moderate strength, boasting a tensile strength of around 345 MPa, yield strength of 275 MPa, and an elongation of about 20%. With a density of 4.51 g/cm³ and a melting point close to 1665°C, it offers good ductility, weldability, and formability for a wide range of structural and industrial applications.
| Specifications | ASTM B265/ ASME SB265 |
|---|---|
| Size | 1000 x 2000 milimeter, 1220 x 2440 milimeter, 1500 x 3000 milimeter, 2000 x 2000 milimeter, 2000 x 4000 milimeter |
| Thickness | 0.1 to 12 milimeter |

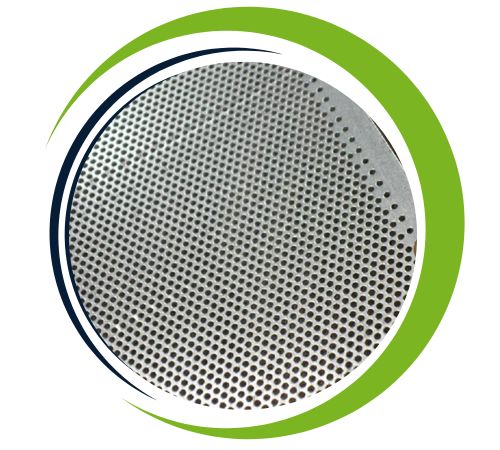

| Form | Plates, Sheet, Slatting Coils, Coils, Foils, Plain Sheet, Shim Sheet, Strip, Rolls, Perforated Coils, Flats, Blank , Ring |

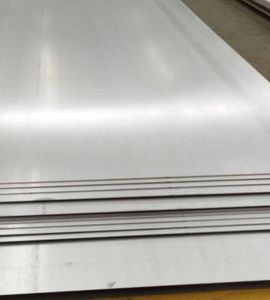

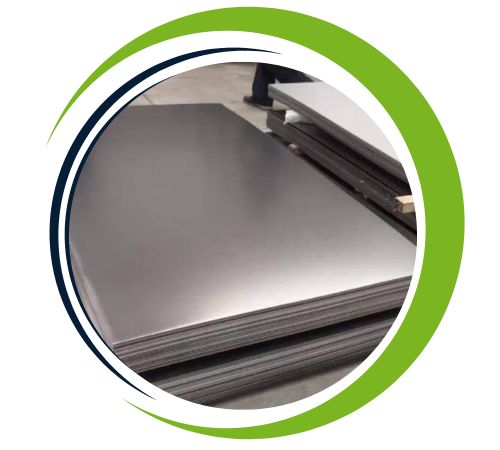

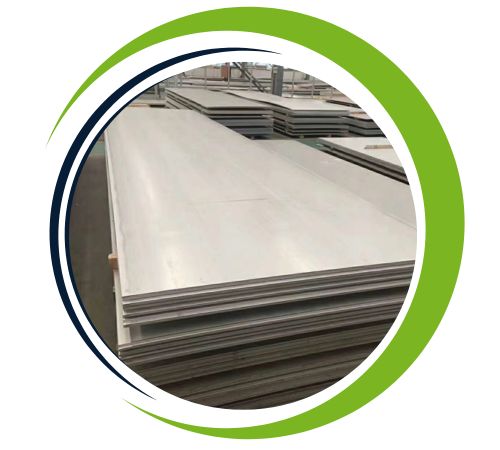

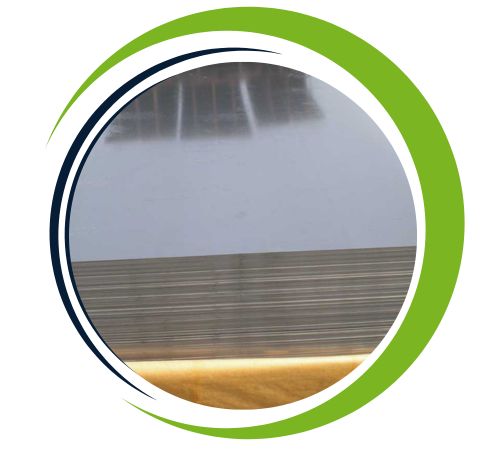

| Finish | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade 2 Sheet & Plate | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 Sheet & Plate | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 2 sheets and plates offer excellent corrosion resistance, particularly in marine and chemical environments, making them ideal for aerospace, chemical processing, and marine industries. They are lightweight yet exceptionally strong, providing a high strength-to-weight ratio. Known for their biocompatibility, they are widely used in medical applications. Titanium Grade 2 also has good weldability, formability, and resistance to high temperatures, making it versatile for various applications. Additionally, it exhibits low thermal expansion, enhancing stability in challenging environments.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Titanium Grade 2 Sheets and Plates are extensively used in industries that demand lightweight, durable, and corrosion-resistant materials. In the chemical and petrochemical fields, they find applications in heat exchangers, pressure vessels, and reactor linings. The marine industry depends on them for ship components and seawater systems, thanks to their resistance to saltwater corrosion. In aerospace, they are utilized for airframe structures and brackets, while in the medical field, they are essential for surgical tools and orthopedic implants. Additionally, these materials are employed in power generation, desalination plants, and architectural projects, providing reliable performance even in harsh and corrosive environments.
