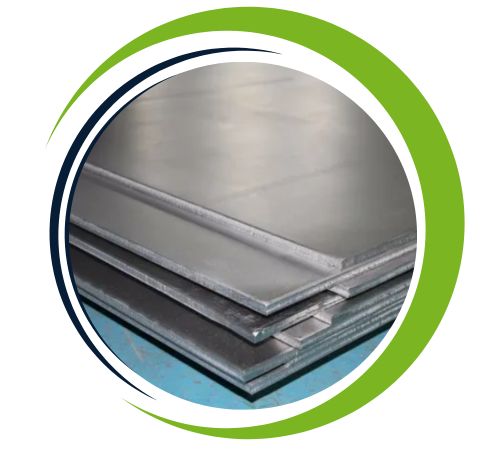

Khush Sheets and Plates is a well-known manufacturer and exporter of Zirconium Sheets and Plates in Kolkata, India. We have an unwavering commitment to quality and customer satisfaction, and we supply top–quality zirconium products that are designed to suit the requirements of high-performance businesses. Our plates and sheets of zirconium are made using high-technology manufacturing methods and rigorous quality checks to ensure utmost purity, strength, and resistance to corrosion. Providing service to industries like nuclear, chemical, and aerospace, we provide customized size and prompt delivery to suit particular client needs. Khush Sheets and Plates is your reliable ally for zirconium solutions guaranteed in India and worldwide.
Zirconium sheets and plates usually consist of more than 99.2% pure zirconium, with a little hafnium (up to 4.5%) and minor impurities. Such a content guarantees excellent corrosion resistance, particularly in harsh environments such as acids and alkalis. Zirconium has a tensile strength of about 330 MPa, good ductility, and superior thermal and electrical conductivity. It operates satisfactorily at high temperatures and radiation, which makes it suitable for harsh-use applications. The mechanical properties also include good weldability and workability, making it easy to fabricate into intricate parts without loss of strength or stability.
| Standard Specification : | ASTM B551 / ASME SB551 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Zirconium and Zirconium Alloys Chemical Composition | |||||||||
| Products | Chemical Composition (wt%≤) | ||||||||
| Sn | Fe | Ni | Cr | Fe+Cr | Fe+Ni+Cr | Nb | Al | B | |
| R60001 Nuclear Grade Pure Zirconium (Zr-0) | 0.005 | 0.15 | 0.0070 | 0.02 | – | – | – | 0.0075 | 0.0005 |
| R60802 (Zr-2) | 1.20-1.70 | 0.07-0.20 | 0.03-0.08 | 0.05-0.15 | – | 0.18-0.38 | – | 0.0075 | 0.0005 |
| R60804 (Zr-4) | 1.20-1.70 | 0.18-0.24 | 0.0070 | 0.07-0.13 | 0.28-0.37 | – | – | 0.0075 | 0.0005 |
| R60901 (Zr-2.5Nb) | 0.0050 | 0.150 | 0.0070 | 0.02 | – | – | 2.4-2.8 | 0.0075 | 0.0005 |
| R60904 (Zr-2.5Nb) | 0.010 | 0.065 | 0.0035 | 0.01 | – | – | 2.5-2.8 | 0.0075 | 0.0005 |
| Zirconium and Zirconium Alloys Sheet & Plate Mechanical Properties | |||||
| Grades | |||||
| Products | R60700 | R60702 | R60704 | R60705 | R60706 |
| Tensile strength, min, ksi (MPa) | – | 55 (380) | 60 (415) | 80 (550) | 74 (510) |
| Yield strength, min, ksi (MPa) | – | 30 (205) | 35 (240) | 55 (380) | 50 (345) |
| Tensile strength, max, ksi (MPa) | 55 (380) | – | – | – | – |
| Yield strength, max, ksi (MPa) Sheet, Plate and Strip | 44 (305) | – | – | – | – |
| Elongation in 2 in. or 50 mm, min, % | 20 | 16 | 14 | 16 | 14 |
| Bend test radius | 5T | 5T | 5T | 3T | 2.5T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Khush Sheets and Plates based in Kolkata, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Zirconium Sheets and Plates to meet specific project needs. Our team at Khush Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@khushsheetsandplates.co.in
Zirconium plates and sheets are widely applied in applications requiring outstanding corrosion resistance and thermal stability. In the nuclear field, zirconium is utilized as a cladding for fuel rods because of its low neutron absorption. The chemical processing sector utilizes zirconium sheets in reactors, heat exchangers, and pipes carrying aggressive acids. It is utilized in aerospace and defense for its strength-to-weight ratio and resistance to heat. Zirconium is also applied to medical devices, electronics, and marine engineering due to its anti-corrosive and biocompatible properties and is a versatile and key material in contemporary engineering functions.
